The micro-grid based on renewable energy is booming now. However, we have been facing more and more challenges
• Uncontrollable and intermittent of solar and wind power
• Lack of synchronous and inertia of power electronic inverters in power grid
• Bigger and faster impact to system voltage and frequency by load fluctuation
As an effective means for operation of distributed generation equipment, micro-grid can make full use of various renewable
energies. It is suitable for power supply of commercial community, industrial park, especially isolated island and rural area far from power grid.
SIFANG micro-grid automation and energy management system provide a complete power automation solution. It is able to monitor, control, protect, manage and optimize the operation of micro-grid to ensure the stability, reliability and economics of power supply.

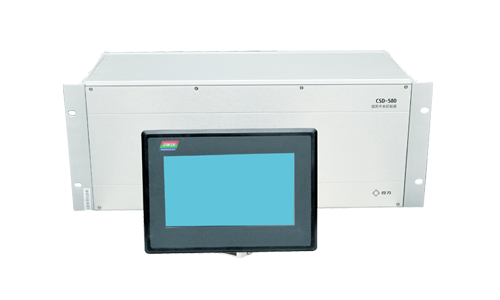

It includes local controllers of wind power, photovoltaic, energy storage system and gas or diesel generation, central
control systems and complete protection IEDs.
SIFANG micro-grid monitoring and energy management system is divided into three levels according to its functions:
• Field level, distributed controllers for various distributed energy (wind, photovoltaic and storage etc.) interface to corresponding power electronics to real-time monitor and control micro-grid electrical devices.
• Protection level, complete micro-grid oriented protection and control scheme under grid-connected and isolated network modes.

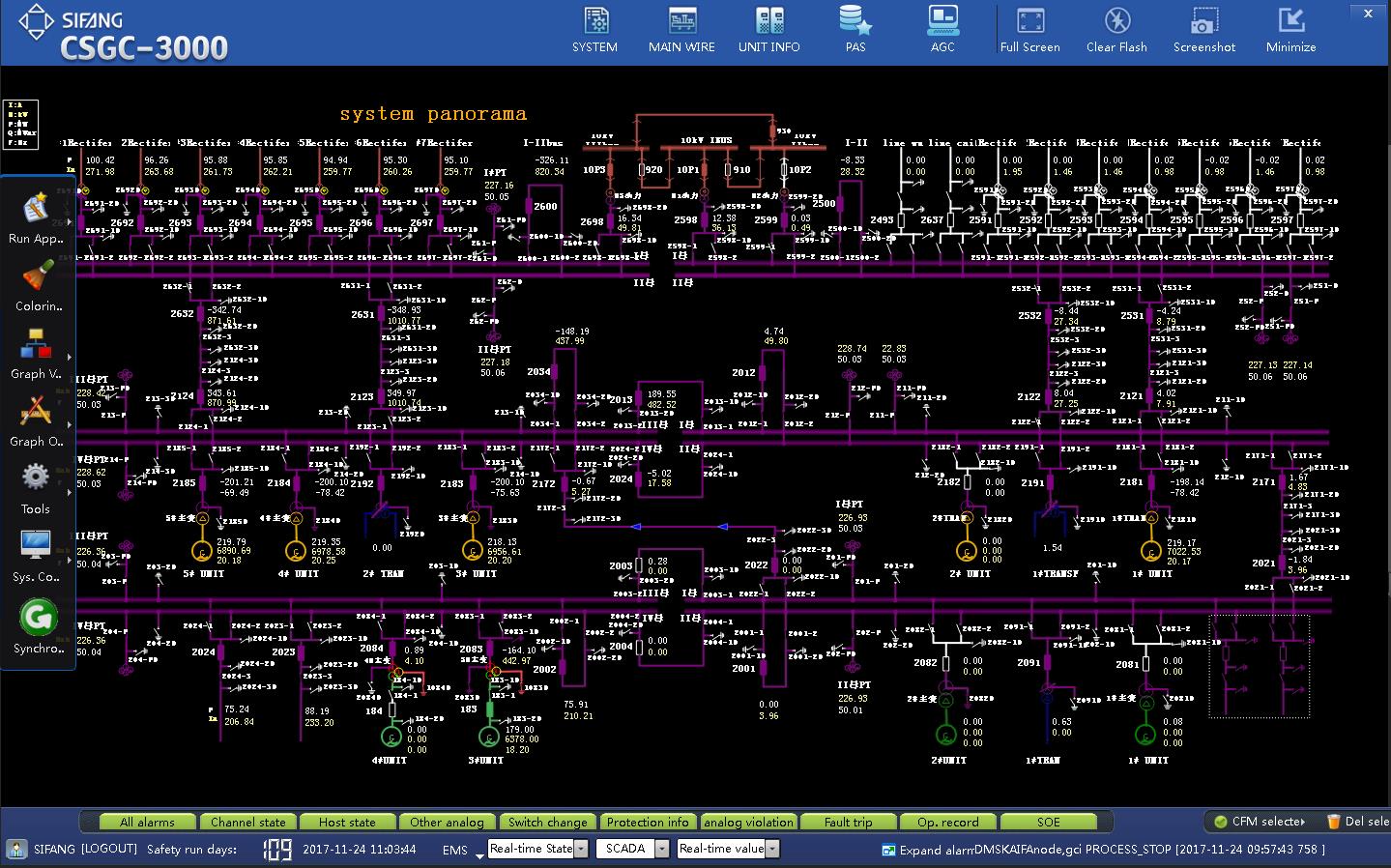

• Station level, micro-grid energy management and optimization system
Optimize of cold, heat and power supply of entire MG system to ensure economical operation.
Optimize dispatching of power supply of distributed generation system, to maximize the renewable energy output and stabilize the voltage and frequency at same time, reduce the operation cost.
Optimize operation of distributed MG system, increase power system capacity against disaster.
Optimized operating plan to provide safe and stable power supply with solar and wind sources at a competitive price.
Support multiple OSs (Windows/UNIX/Linux)
Support multiple communication standards, such as IEC61850, IEC101/104, etc.
Unique protection scheme for transition between grid-connected and off-grid modes.
Flexible operating strategy adapting to real time grid status automatically.
Advanced control scheme to improve power supply reliability.
