概述

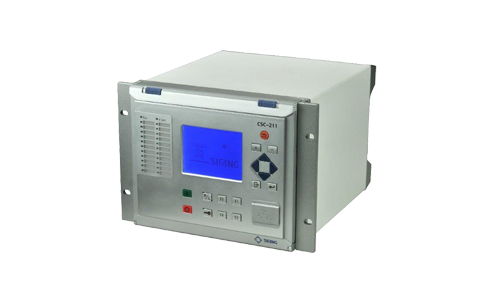

CSC-211 Multifunction Protection IED is selective, reliable and high speed protection IED with rich functions to cover following applications: 1) Protection, bay control unit, MU(Merging Unit), and SCU(Smart control Unit) in one IED; 2) Work as feeder or capacitor bank protection IED; 3) Work as backup protection IED for transmission lines, transformer; 4) Fully proven protection functions library; 5) Powerful scalable hardware capability, for present and future application: Mixable CT&VT inputs/SV(Sampling Value) input/output; Mixable Binary inputs & output relays/GOOSE inputs /outputs; 6) Robust hardware with excellent EMC performance and IP54 protection under -40℃ to 70℃ operating temperature.
适用范围
CSC-211 digital multifunction protection IED is used for factory power system of 110kV or below power grid and power plant. It has perfect protection, measurement, control and monitoring function. It provides an integrated scheme for feeder, capacitor, circuit breaker, etc., at the same time, it can be used as a backup protection device for a circuit and a transformer.
特点
①Integrated protection function and monitor and control function.
②Meet demands for three-phase tripping in transmission and distribution grid.
③The device is equipped with module self-diagnosis function.
④The device can provide complete report records, including operation report, alarm report and tripping report.
⑤Up to 2000 reports can be stored, and the reports can be saved, even there is a power outage.
⑥It supports PRP protocol based on IEC 62439-3, the device can be set to PRP mode, and the dual network ports adopt redundant mode to send and receive information in parallel.
产品认证

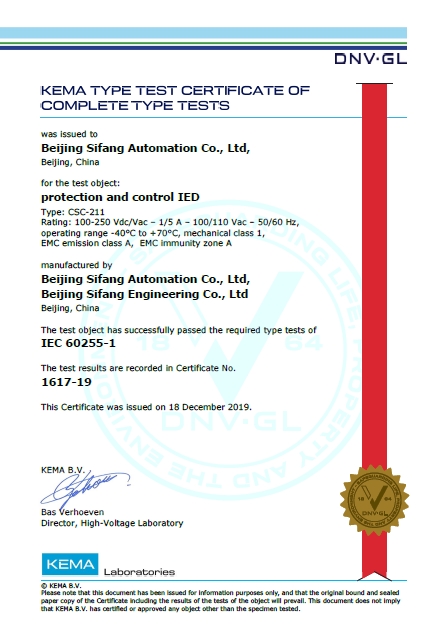

CSC-211 KEMA CERTIFICATE
